Zenith 3D GM-BB

Show article variant table

Art./Item	Foro dischi (mm.)	Ø (mm.)	thickness	Sett.Altezza	Sett. Q.tà	Largh.
54430	22,2	125	2,2	10	10	31
54431	22,2	150	2,2	10	12	32
54432	22,2	180	2,4	10	14	33

Zenith 3D GM-BB is the new diamond disc that uses 3D Evolution technology with diamond grains arranged in various configurations, equidistant from each other and perfectly aligned on each layer of the diamond sector within the bond. This innovation ensures that, as one layer of the diamond disc wears down, a new layer of aligned grains is uniformly exposed, guaranteeing high performance.

The uniform wear of Zenith 3D allows the machines on which it is mounted to maintain a constant engine speed and never work under load, maintaining maximum stability and almost totally eliminating overload and vibration to the operator.

The platinum quality diamond grooving disc is suitable for dry cutting of bricks and concrete.

MATERIAL TYPE

Brick 🟠🟠🟠
Cement 🟠🟠🟠

QUALITY STANDARDS

Platinum quality

CUTTING INSTRUCTIONS

Dry cutting
Wet cutting

Technology

Zenith 3D Technology

Zenith 3D technology relies on a particular geometric configuration of the diamond grains that improves the durability and performance of the diamond tool between 30% and 70%.

Laser

Laser welding ensures maximum precision and strength for diamond blades.

Performance

Platinum

Innovative product with aa special design that responds to the most advanced technology and provides additional benefits (low noise, cooling, etc.).

High speed

Blade manufactured with special technologies that make it particularlyfast.

Long life

Grazie alle speciali tecnologie con cui è stato costruito, il disco garantisce una lunga durata di utilizzo.

Wet and dry cutting

OSA - EN13236 certified quality

Zenith Advantages

Kapriol Power Tools has OSA certification (Organisation for the Safety of Abrasives). OSA marking certifies that the product complies with manufacturing, quality and safety regulations according to EN 13236 and the safety standards in force. This regulation contains all prescriptions and/or safety measures to be taken in order to prevent or reduce dangers deriving from design and use of abrasive/diamond tools.

1. Name of the manufacturer
2. Traceability code
3. Manufacturer identification number
4. Maximum working speed in m/s
5. Maximum rotation speed (rpm
6. Declaration of conformity
7. Restrictions of use
8. OSA Marking
9. Dimensions
10. Direction of rotation

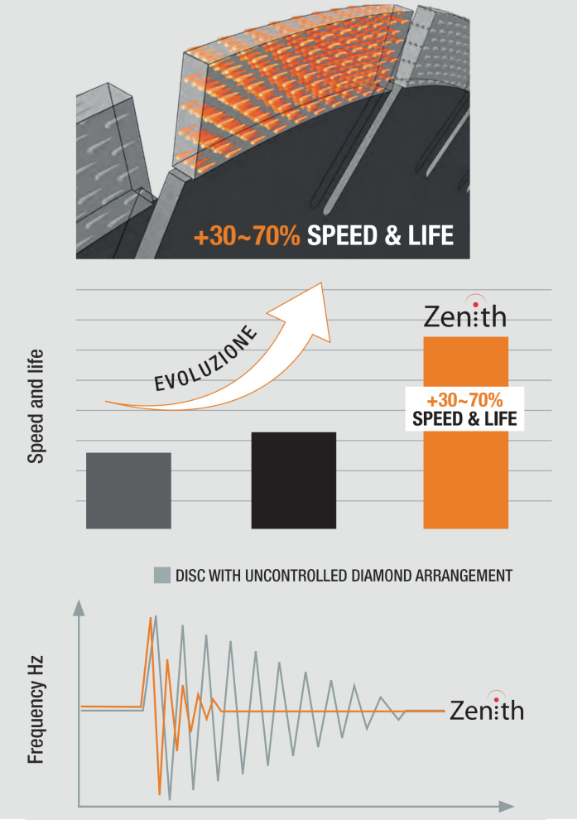

In conventional tool manufacture, cutting speed and tool life are two inversely proportional factors. All manufacturers in the past have aimed to produce diamond tools that combine these two parameters.

Zenith 3D Evolution has surpassed the limit imposed by old technologies by achieving exceptional speed and tool life performance, the result of huge investment in research and in advanced, automated production systems, guaranteeing consistent production standards.

The uniform consumption of the diamond disc allows the tool to be constantly revived, maintaining maximum stability and almost totally eliminating overload and vibration to the operator, especially in manual applications.
