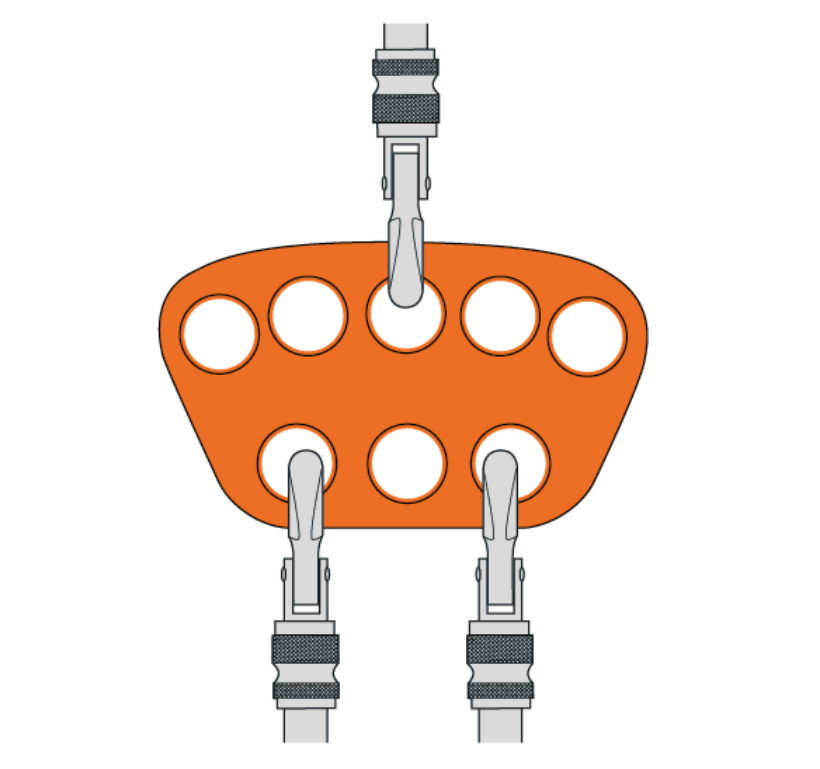

High-strength aluminium anchorage multiplier plate with 8 single anchorage point multiplier holes. In addition to the main anchorage hole, the anchorage multiplier is equipped with 2 secondary holes functional for rescue operations and stretcher attachment, and 5 additional anchorage holes.
TECHNICAL SPECIFICATIONS
- high-strength plate
- 5 anchorage holes
- 1 main fixing hole
- 2 secondary holes for rescue operations and recovery with stretcher
- breaking load 36 kN
MATERIAL
- Plate: aluminium
Temporary anchorage systems
Pendulum effect
Falling factors
Anchors are the key points that guarantee the operators safety at height. Temporary anchoring systems can be connected to permanent anchors, such as connecting webbing. Here below there are some examples that demonstrate the different resistance of the anchor according to the type of use. It is good practice for users to be aware of how significantly the resistance can vary.
1. With this type of use, its resistance is approximately 2/3 of the webbing nominal value
2. With this type of use, its resistance is 2 times higher than the webbing nominal value
3. If used on a structure with edges, the resistance is approximately 2/3 of the webbing nominal value
4. If used on a structure with edges, the resistance is approximately 1/3 of the webbing nominal value
5. With this type of use, its resistance is 1/2 of the webbing nominal value
If the operator is connected to an anchorage point by a retracting device or a rope, in the event of a fall there may be hazardous and uncontrolled side swinging, the so-called pendulum effect. To decrease the risks associated to the pendulum effect, it is important that the fall protection device is positioned vertically in relation to the work area.
The operator must therefore work with a safety clearance of 30° below the anchorage point. When it is not possible to position the rope retracting or fall protection devices in a perpendicular position in relation to the anchorage point, it is necessary to foresee a number of deviation or sheave points to dampen the pendulum effect.
A FATTORE DI CADUTA 0
Il punto di ancoraggio è posto al di sopra della testa dell'operatore; il dispositivo anticaduta risulta essere completamente disteso. In caso di caduta si ha la minor distanza tra il piano di calpestio dell'operatore e il possibile ostacolo sottostante.
B FATTORE DI CADUTA 1
Il punto di ancoraggio è posto allo stesso livello del punto di attacco dell'imbracatura. In questo caso la caduta è pari alla lunghezza del cordino + la distanza del assorbitore di energia intervenuto.
C FATTORE DI CADUTA 2
Il punto di ancoraggio è posto sullo stesso piano di calpestio dell'operatore. In questo caso la caduta è pari a due volte la lunghezza del cordino + la distanza dell'assorbitore di energia intervenuto.
Recommended use
Suspension work
Rescue and recovery
Possible use
Trellis
