| Art./Item |  Foro dischi (mm.) | Ø (mm.) | Ø (cm.) |  thickness | Sett.Altezza | Sett. Q.tà | Largh. |
|---|---|---|---|---|---|---|---|
| 54349 | 22,2 | 230 R/F | 230 R/F | 2,8 | 15 mm | 15 | 41,3 mm |
Zenith 3D Sonic Evolution 3D is the new cutting disc that makes use of 3D Evolution technology based on a special geometric arrangement of diamond grains in configurations that are equidistant from each other and perfectly aligned on each layer of the diamond sector within the bond.
The new technology of this grinder disc guarantees a 30 to 70 per cent improvement in diamond tool life and performance. Thanks to this new technology, when a diamond layer wears off, a new layer with the same amount of aligned grains is evenly exposed outside the binder. The uniform wear of Zenith 3D allows the machines on which it is mounted to maintain a constant engine speed and never work under load.
Silent technology, on the other hand, by inserting a layer of sound-absorbing material between two steel cores of the diamond blade, allows vibrations to be absorbed and high-frequency noise to be reduced during cutting.
The Zenith 3D Sonic Evolution diamond blade is suitable for cutting resistant materials such as concrete, reinforced concrete, bricks, stone and granite.
MATERIAL TYPE
- Brick 🟠🟠🟠
- Cement 🟠🟠🟠
- Reinforced concrete 🟠🟠🟠
- Abrasives/Refractories 🟠🟠🟠
- Granite/Stone 🟠🟠🟠
QUALITY STANDARDS
- Platinum quality
CUTTING INSTRUCTIONS
- Dry cutting
- Wet cutting
Technology
Zenith 3D Technology
Zenith 3D technology relies on a particular geometric configuration of the diamond grains that improves the durability and performance of the diamond tool between 30% and 70%.

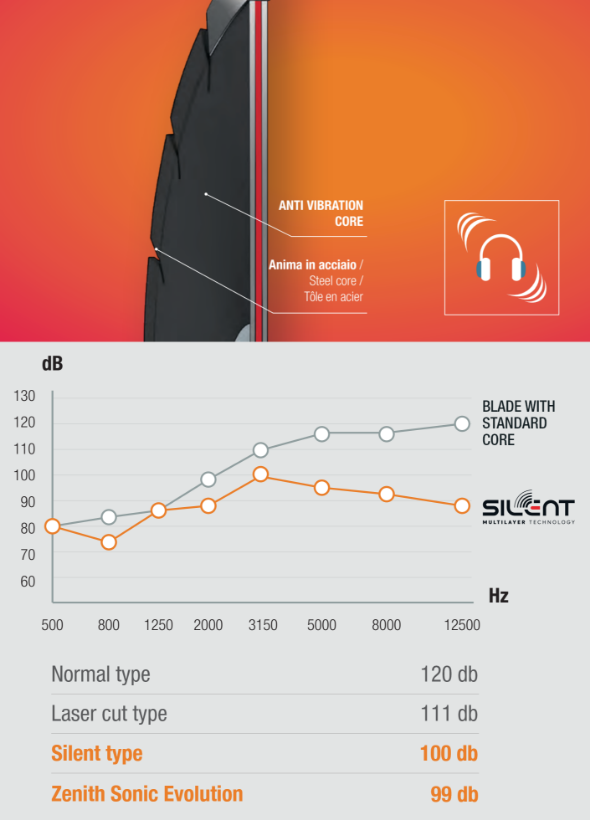

Silent Multilayer Technology
Technology that involves the insertion of a layer of sound-absorbing material between two steel cores to obtain the maximum vibrations absorption and the reducing of high-frequency noise during cutting.
Laser
Laser welding ensures maximum precision and strength for diamond blades.
Performance
Platinum
Innovative product with aa special design that responds to the most advanced technology and provides additional benefits (low noise, cooling, etc.).
Silenced core
Silenced core designed to drastically reduce noise by absorbing vibration, protecting the operator from the risks of excessive noise exposure. Noise reduction -30%.
Long life
Grazie alle speciali tecnologie con cui è stato costruito, il disco garantisce una lunga durata di utilizzo.
High speed
Blade manufactured with special technologies that make it particularlyfast.
Height 12 mm
Diamond segment with increased height. Ensures fong life of the blade.
Wet and dry cutting
OSA - EN13236 certified quality
Zenith Advantages
Silent Advantages
Kapriol Power Tools has OSA certification (Organisation for the Safety of Abrasives). OSA marking certifies that the product complies with manufacturing, quality and safety regulations according to EN 13236 and the safety standards in force. This regulation contains all prescriptions and/or safety measures to be taken in order to prevent or reduce dangers deriving from design and use of abrasive/diamond tools.
1. Name of the manufacturer
2. Traceability code
3. Manufacturer identification number
4. Maximum working speed in m/s
5. Maximum rotation speed (rpm
6. Declaration of conformity
7. Restrictions of use
8. OSA Marking
9. Dimensions
10. Direction of rotation
In conventional tool manufacture, cutting speed and tool life are two inversely proportional factors. All manufacturers in the past have aimed to produce diamond tools that combine these two parameters.
Zenith 3D Evolution has surpassed the limit imposed by old technologies by achieving exceptional speed and tool life performance, the result of huge investment in research and in advanced, automated production systems, guaranteeing consistent production standards.
The uniform consumption of the diamond disc allows the tool to be constantly revived, maintaining maximum stability and almost totally eliminating overload and vibration to the operator, especially in manual applications.
Urban noise pollution, over time, can cause serious problems of various kinds (psychological, stress, auditory system and various illnesses). This is why it is regulated by precise regulations. For these reasons, we strongly recommend the use of diamond blades with Zenith 3D technology and silenced core that drastically reduce noise thanks to vibration absorption.
